The EKKO EB12E-138 Electric Straddle Stacker is designed with the combination of the versatility of a forklift, reach truck and a walkie stacker. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.



CLICK for BROCHURE



  • Load Capacity 2640 lb
  • Raised Height 138" (11.5ft)
  • Adjustable Forks 8.3-33.5"
  • Adjustable Legs 45.7-59.1"
  • Fork Length 45.3"
  • Curtis Controller
  • 24V Drive Motor
  • 24V Lift Motor
  • Internal Charger
  • Battery 2*12V/100Ah Included
  • Polyurethane Wheels
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • Charger Included
  • 3 Years Limited Warranty

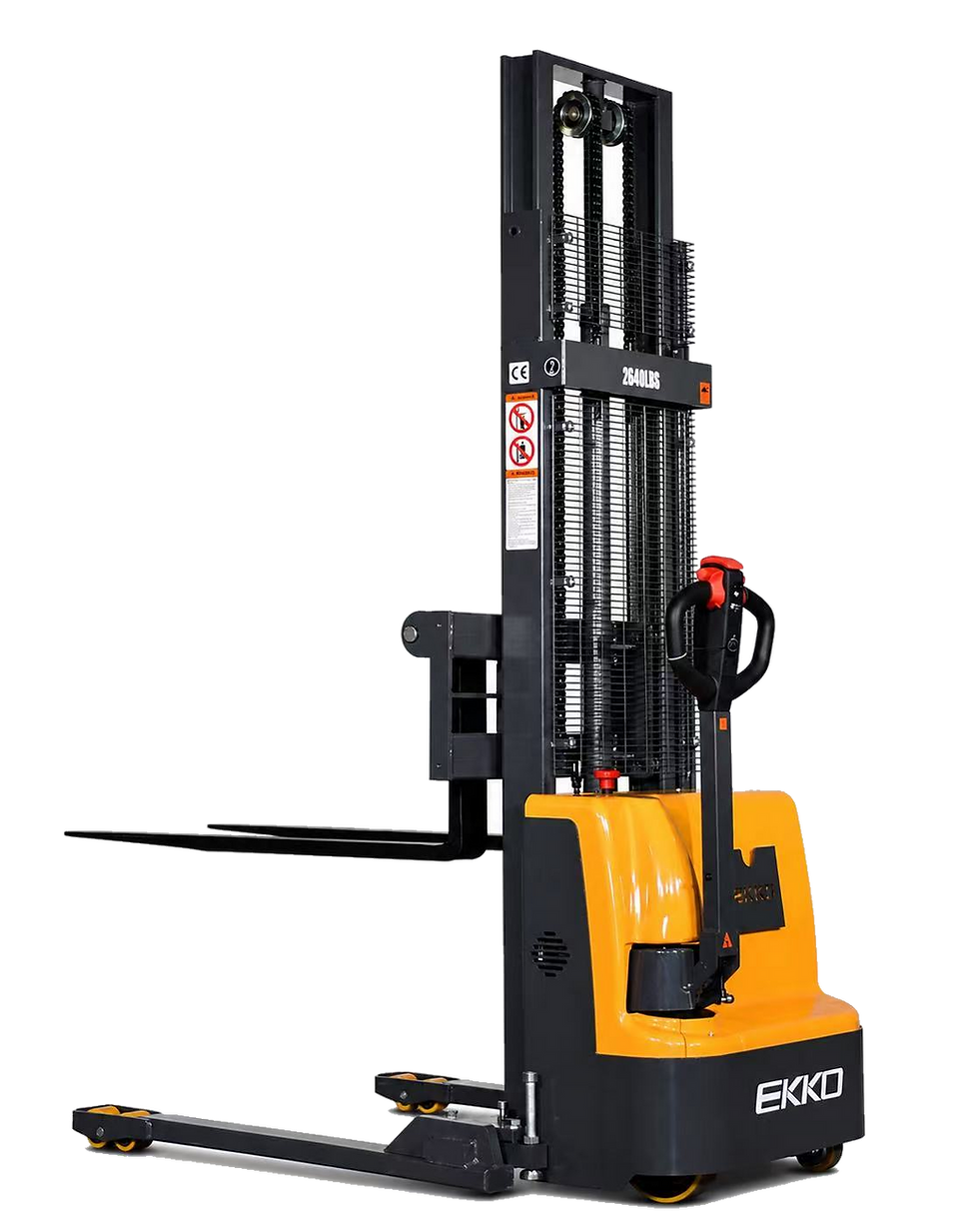

EKKO EB12E-138 Full Powered Straddle Stacker 2640 lb Cap., 138" Height

SKU: EB12E-138
  • Model



    EB12E-138

    Load capacity

    (lb)

    2640

    The max. lifting height

    (in)

    138”

    Load center distance

    (in)

    24

    Fork length

    (in)

    45.3

    Single fork width

    (in)

    4

    Overall fork width

    (in)

    8.3-33.5

    Lowered fork height

    (in)

    2.35

    Fixed leg length

    (in)

    36.5

    Adjustable legs

    (in)

    45.5-59.1

    Turning radius

    (in)

    52.6

    Overall length

    (in)

    70

    Max Overall width

    (in)

    61

    Extended mast height

    (in)

    154

    Lowered mast height

    (in)

    92

    Battery voltage (dimensions)

    (in)

    2×12V/100AH(10/6.6/8.5)

    Internal Charger

    (V/A)

    24V/15A

    Lifting Motor

    (V/W)

    2.2kw. Lift speed, laden/unladen:92/136mm/s                                Lowering speed, laden/unladen:112/98mm/s

    Driving Motor

    (W)

    0.75kw.Driving speed: laden/unladen:4.0/4.2km/h

    Service Weight

    (lb)

    1450
