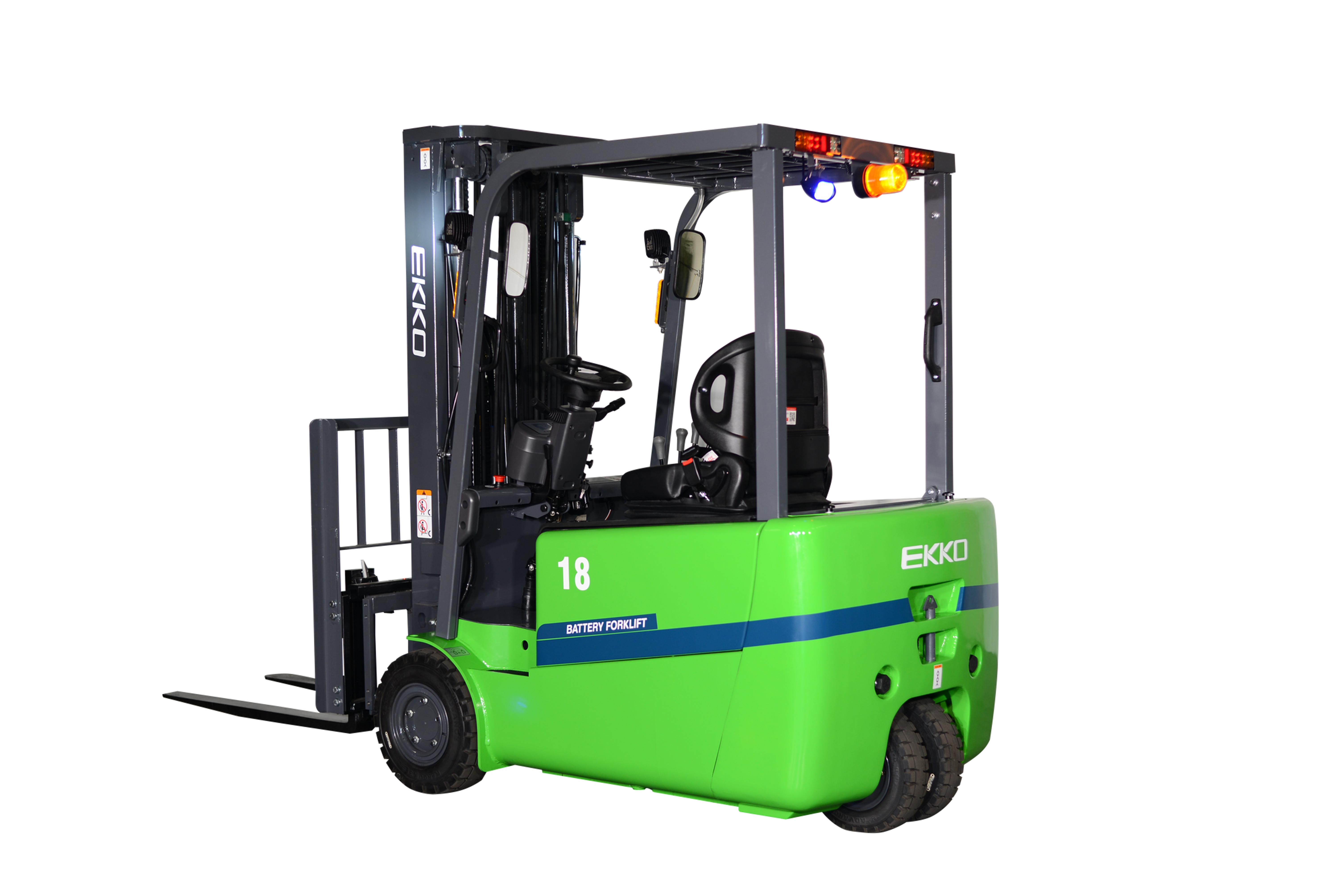

The EKKO E18A-189LI  3 Wheel Lithium Forklift is designed for use for all of your material handling demands. It is ideal for loading and unloading trucks, loading docks, stock rooms, manufacturing floors and warehousing.



Made from high quality steel and components with durable quality drives to withstand any terrain, usage, impact and directional changes for the use of any application with confidence and assurance.





  • Load Capacity 4000 lb
  • Raised Height 189" (15.75ft)
  • Side Shifting Forks
  • Free Lift 46.5”
  • Adjustable Forks
  • Hydraulic Steering
  • ZAPI controller
  • Battery 80V/202Ah Lithium (included)
  • Solid Pneumatic Tires
  • Ergonomic Handle and Controls
  • Steel Construction
  • Robotic Welding
  • 3-Phase 480V Chager (optional 220V & 110V)
  • 3 Year Limited Warranty



EKKO EK18A-189LI

  • Model



    EK18A-189LI

    Power unit



    Lithium

    Operation Type



    Rider

    Loading capacity

    (LBS)

    4000

    Load center

    (Inch)

    24

    Axle center to fork face

    (Inch)

    14.6

    Wheelbase

    (Inch)

    55.1

    Service weight with battery

    LBS

    7341

    Wheels type



    Solid Pneumatic

    Tire size front



    200/50-10

    Tire size rear



    16x6-8

    Wheels



    2×/2

    Tread, front

    (Inch)

    36.5

    Tread, back

    (Inch)

    9.8

    Mast Tilt

     (°)

    3/5

    Lowered mast height

    (Inch)

    86.2

    Free lift height

    (Inch)

    46.5

    Lift height

    (Inch)

    189

    Height of overhead guard (cabin)

    (Inch)

    80.3

    Height of seat

    (Inch)

    41.9

    Overall length

    (Inch)

    116.9

    Overall width

    (Inch)

    44.1

    Ground clearance under mast

    (Inch)

    3.5

    Min.Ground clearance

    (Inch)

    3.5

    Min.Turning radius

    (Inch)

    65.9

    Travel speed,laden/unladen

    (mph)

    10/10

    Lifting speed, with/without load

    (fpm)

    78.7/118.1

    Lowering speed, with/without load

    (fpm)

    114.2/98.4

    Climbing ability, with/without load

    (%)

    22/30

    Service brake



    Hydraulic

    Drive motor, 60-minute rating

    (hp)

    7.7x2

    Lift motor rating at S3 15%

    (hp)

    18.8

    Battery voltage/rated capacity

    (V/Ah)

    80/202 lithium

    Type of drive control



    MOSFET/AC
