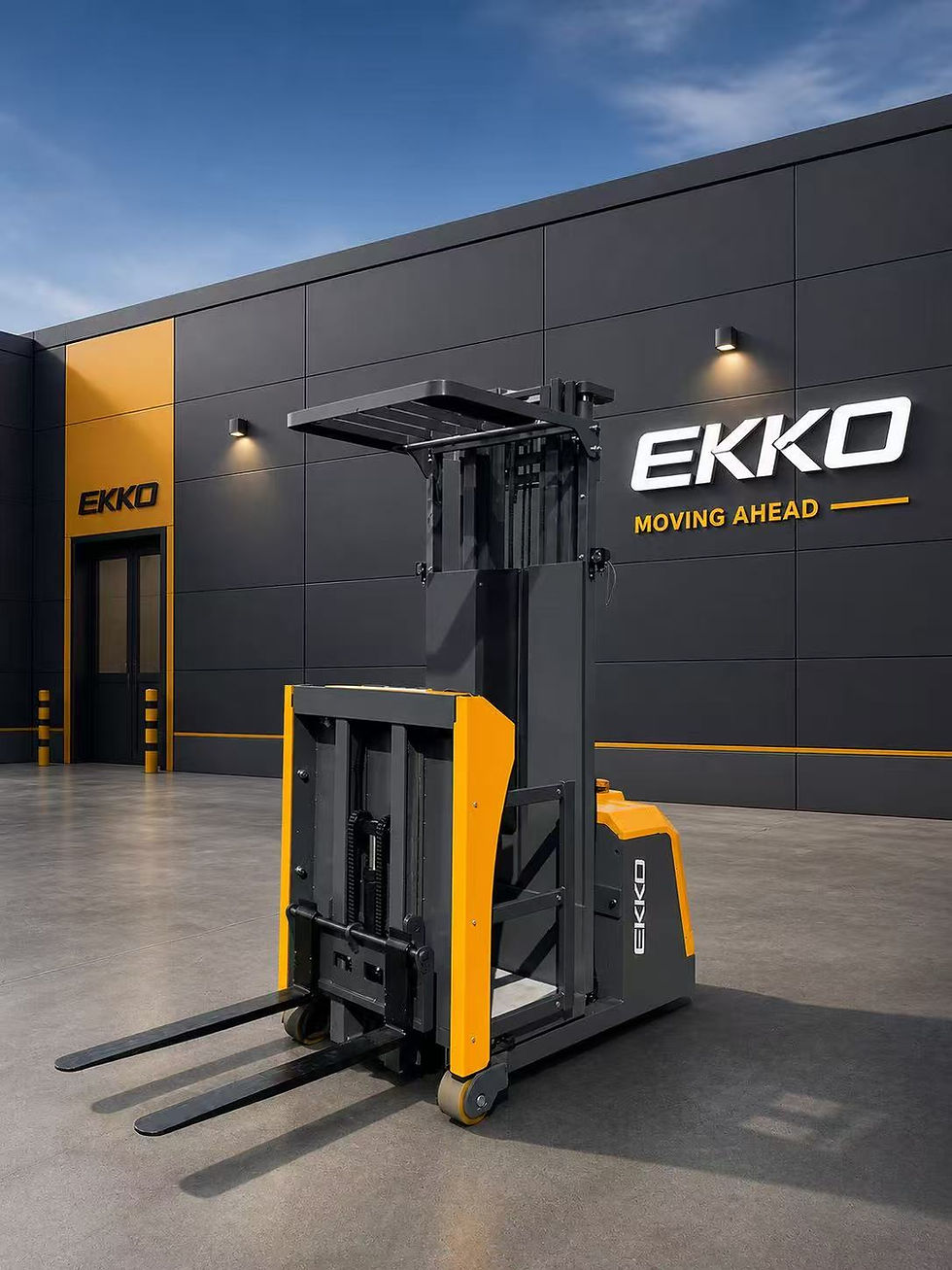

The EOPL150 Series Order Picker is designed with one sole purpose: to efficiently pick your orders from racking and storage facilities, manufacturing floors, and warehouses.

Constructed with high-quality steel and durable components, the EOP150L Series is built to withstand various terrains, heavy usage, impacts, and directional changes, ensuring dependable performance for all applications. This order picker delivers reliable and consistent results, making it perfect for industrial environments.

Features:

Load Capacity: 1500 lbs
Raised Height: 165" | 216"
Adjustable Forks
Auxiliary Fork
Electronic Power Steering (EPS)
AC Drive Motor
Polyurethane Tires
Ergonomic Handle and Controls
Curtis® Controller
24V/200Ah Lithium Battery

EOPL150 Series Lithium Order Picker 1,500lbs

SKU: EOPL150-165LI | EOPL150-216LI

Model	EOPL150 Series
Drive Type	Lithium Order Picker
Operation Type	Standing
Capacity	1,500 lbs
Overall Length	98"
Chassis Width	32/37"
Fork Size	1.2/4/35"
Fork Outside Width	26"
Overhead Guard Height	76"
Handle Height	41"
Fork Lowered Height	1.5"
Cabin Ground Clearance	87"
Ground Clearance at Wheelbase Center	3"
Drive Wheel/Load Wheel Material	Polyurethane
Load Center	16"
Front Overhang	6.7"
Turning Radius	57"
Aisle Width (1000×1200 pallet)	117"
Aisle Width (800×1200 pallet)	121"
Travel Speed – 1st Gear	3.10 mph
Travel Speed – 2nd Gear	1.55 mph
Travel Speed – 3rd Gear	0.75 mph
Travel Speed – 4th Gear	0.37 mph
Max Gradeability (Loaded/Unloaded)	0
Battery Voltage / Capacity (Lithium)	24V/200Ah
Drive Motor Power	1.5 KW
Lift Motor Power	3 KW
Steering Type	Electric Steering
Brake Type	Electromagnetic Brake
Motor Type	DC
Drive Control Type	AC

EOPL150 Series Lithium Order Picker 1,500lbs

Specifications
